Physical Characteristics

尺寸 Dimensions:

L100mm × W100mm x H62mm

重量 Weight:

130g

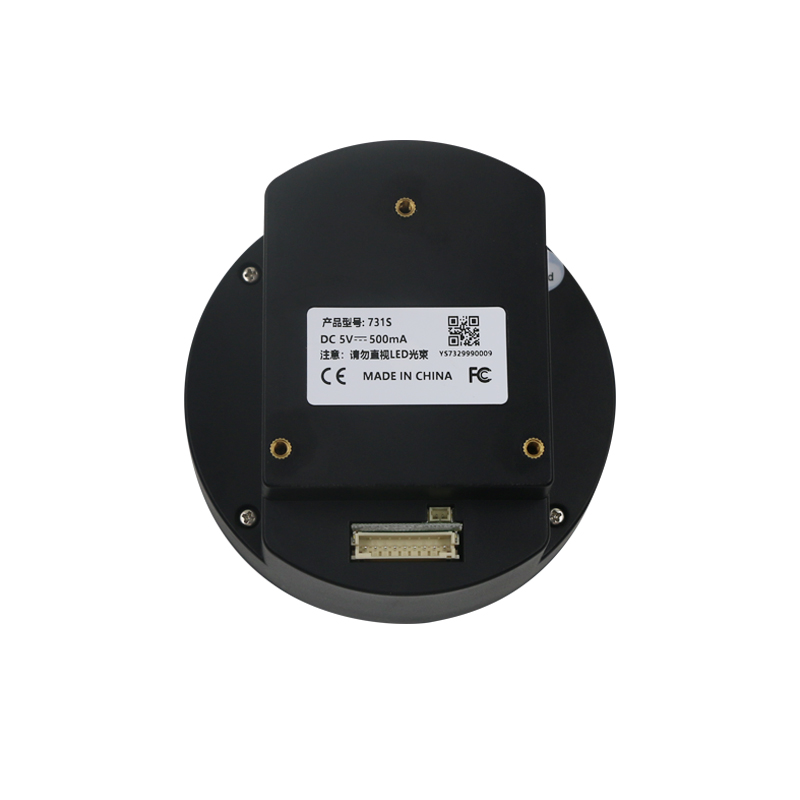

電壓 Voltage:

5 V±10% DC

電流 Current:

500mA (Operating)

Performance Characteristics

光源 Light Source:

Illumination:617nm RED LED

視場角 Field of View:

53° (H) x 41° (V)

偏轉/傾斜/旋轉Roll / Pitch / Yaw:

360°, ±65° , ±60°

打印對比度Print Contrast:

25% minimum reflective difference

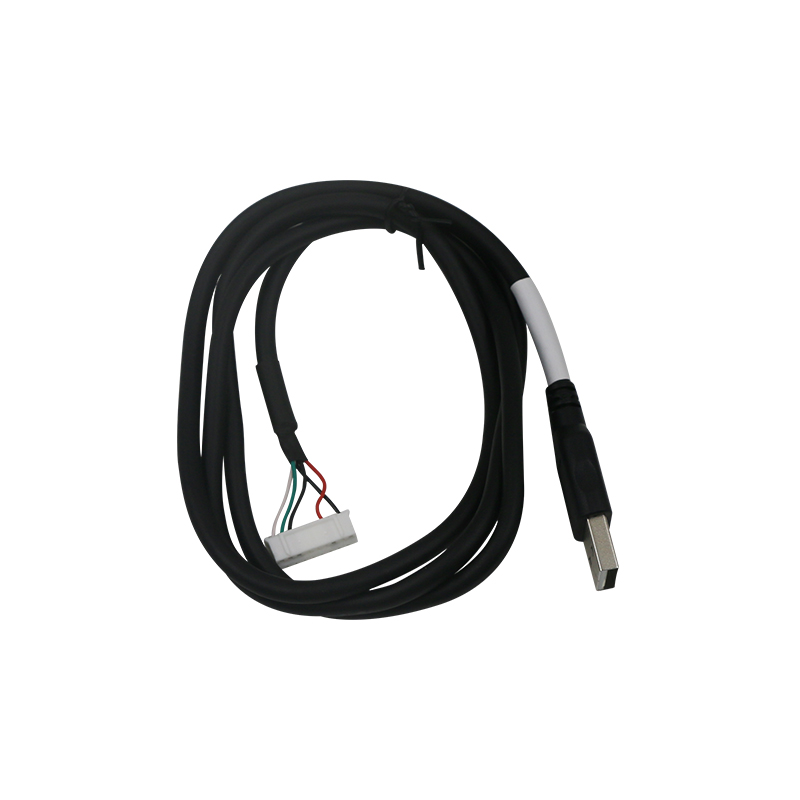

接口支持 Interfaces Supported:

USB,RS232

運動容差Motion Tolerances:

>2m/s

Symbology Decode Capability

一維條碼/1-D:

UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.

二維條碼/2-D:

PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc

條碼精度Minimum Resolution:

4 mil Code39

User Environment

工作溫度 Operating Temperature:

-30°C to 50°C

存儲溫度 Storage Temperature:

-40°C to 70°C

濕度 Humidity:

0% to 95% relative humidity,non-condensing

抗震性 Shock Specifications:

Designed to withstand 1.5m(5’) drops

環境光免疫 Ambient Light Immunity:

100.000 Lux

Decode Ranges

5 mil (Code 39)

0mm-40mm

13 mil (100%Upca)

0mm-150mm

Performance may be impacted by bar code quality and environmental conditions
